Miniature Load Cells: Compact Precision Sensors for Force Measurement

In the modern era of engineering and technology, where devices are becoming smaller and more efficient, the demand for compact, high-precision sensors has surged. This is especially true in the field of force measurement. From medical instruments to robotics and aerospace systems, the need for accurate force detection in tight spaces has given rise to the development and widespread use of Miniature Load Cells. These small yet powerful sensors play a critical role in applications where traditional load cells are too large or impractical.

One of the most popular types of compact force sensors is the Miniature Load Cell, particularly the button-type variant. Designed for tight spaces and low-profile setups, miniature load cells offer exceptional precision and reliability. For more details on their specifications, applications, and features, refer to this Miniature Load Cell guide, which provides a comprehensive look at this technology and its benefits in diverse industries.

What Are Miniature Load Cells?

Miniature load cells are small-sized force transducers engineered to measure compression, tension, or both, depending on the design. These devices typically use strain gauge technology to detect and convert mechanical force into a measurable electrical signal. Despite their compact size, they are capable of delivering high accuracy, sensitivity, and repeatability, making them ideal for applications where space is limited but performance cannot be compromised.

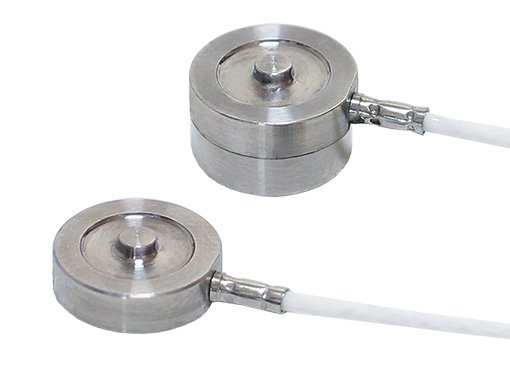

Button-type miniature load cells, one of the most commonly used configurations, feature a low-profile, circular housing. They are typically constructed from stainless steel or aluminum and designed to withstand various environmental conditions while maintaining measurement integrity.

Common Applications of Miniature Load Cells

The versatility and compact design of miniature load cells enable them to be used in a wide range of industries and applications, such as:

1. Medical Devices and Equipment

Miniature load cells are extensively used in medical diagnostics and treatment equipment. Applications include infusion pumps, surgical robots, prosthetics, and patient monitoring systems where precise force feedback is critical.

2. Robotics and Automation

In robotics, accurate force sensing is essential for motion control and safety. Miniature load cells provide feedback in robotic joints, grippers, and automation systems, ensuring tasks are performed with the right amount of pressure and precision.

3. Aerospace and Defense

Space-saving sensors are crucial in aerospace where every gram and cubic centimeter counts. Miniature load cells are used in structural testing, actuator systems, and vibration monitoring equipment in aircraft and spacecraft.

4. Research and Testing

In laboratories and R&D settings, miniature load cells are valuable tools for mechanical testing, material analysis, and experimental setups where space constraints are present and high-resolution force measurement is required.

5. Consumer Electronics

Miniature load cells are found in testing environments for smartphones, wearables, and other compact electronic devices, helping manufacturers assess performance, durability, and ergonomics.

Key Benefits of Miniature Load Cells

Compact and Lightweight

The primary advantage of miniature load cells is their compact footprint. They can be installed in tight or inaccessible locations without compromising on measurement quality.

High Accuracy and Sensitivity

Despite their size, miniature load cells offer impressive measurement precision. They can detect even slight changes in force, which is crucial for applications requiring fine-tuned force control.

Easy Integration

Miniature load cells can be seamlessly integrated into existing systems. They often feature threaded holes, flanges, or flat bases for straightforward mounting.

Durability and Reliability

Most miniature load cells are made with high-grade materials and sealed against moisture and contaminants, making them suitable for both indoor and outdoor applications. Some models are also temperature-compensated for enhanced stability.

Customization Options

Many manufacturers offer custom miniature load cell solutions tailored to specific application requirements, including special mounting options, force ranges, and output configurations.

Factors to Consider When Choosing a Miniature Load Cell

When selecting the right miniature load cell, it’s important to consider several technical and operational factors:

• Force range: Choose a load cell that matches the expected maximum force levels in your application.
• Type of force: Determine whether you need to measure compression, tension, or both.
• Mounting requirements: Ensure the sensor fits the available space and can be securely mounted.
• Output signal: Verify that the output is compatible with your data acquisition system or controller.
• Environmental conditions: Consider exposure to moisture, temperature fluctuations, and mechanical vibrations.

Conclusion

Miniature load cells are a vital component in today’s high-tech environments, offering precision force measurement in compact, efficient packages. Their use across industries such as medical, robotics, aerospace, and consumer electronics underscores their adaptability and reliability. By understanding their capabilities and selecting the right model for your specific application, you can ensure accurate and consistent force monitoring even in the most space-constrained settings. As technology continues to evolve, the role of miniature load cells in delivering precision and innovation will only become more important.
