How to Choose a Cold-Weather Trolling Motor Battery

When temperatures plunge and ice forms at the boat ramp, most anglers stay home. But for those who embrace cold-weather fishing, the rewards can be extraordinary — less competition, more active fish, and some of the season’s best catches. The problem is that the gear separating a great day on the water from a stranded, frustrated one often comes down to a single component: your trolling motor battery.

Standard marine batteries were not engineered with freezing mornings in mind. Cold temperatures attack battery chemistry directly, slashing available capacity, dropping voltage under load, and leaving anglers with a dead motor miles from the dock. What felt like a fully charged battery in the garage can behave like a half-depleted one the moment it hits near-freezing water temperatures, making reliable power on the go even more important

.Fortunately, not all batteries respond the same way to the cold. LiFePO4 lithium batteries, AGM, and Gel options each handle low temperatures differently, and Understanding those differences is the first step toward making a smarter purchase, especially when considering battery safety in different applications. This guide cuts through the technical noise to help cold-weather anglers identify the right trolling motor battery — one built to deliver reliable power when conditions are at their harshest, keeping you on the water longer and getting you home safely.

Why Cold Weather is the Ultimate Test for Your Trolling Motor Battery

Battery chemistry is fundamentally a series of electrochemical reactions, and like most chemical processes, those reactions slow dramatically when temperatures drop. Inside a lead-acid battery, the sulfuric acid electrolyte thickens as it approaches freezing, increasing internal resistance and cutting the battery’s ability to deliver current. A fully charged flooded lead-acid battery can lose 30 to 40 percent of its rated capacity at 32°F — and that number climbs past 50 percent if temperatures dip into the teens. LiFePO4 lithium batteries handle this far better, typically losing only 10 to 20 percent of capacity in similar conditions while maintaining more stable voltage under load, which directly translates to consistent motor thrust throughout the day.

Voltage stability matters just as much as raw capacity. As a lead-acid battery discharges in the cold, voltage sags earlier and more steeply than it would on a warm day. Your trolling motor’s speed controller reads that dropping voltage as a depleted battery and begins cutting power — even when significant charge remains. This creates a frustrating scenario where the motor loses thrust mid-presentation or shuts down unexpectedly, leaving you fighting wind and current with no propulsion.

The marine environment compounds every one of these problems. Constant hull vibration loosens internal plate connections in lead-acid batteries over time, accelerating failure. Moisture and temperature swings corrode terminals and weaken seals. For cold-weather anglers specifically, these aren’t minor inconveniences — a dead trolling motor in a remote cove with falling temperatures and limited daylight is a genuine safety concern. Choosing a battery engineered to resist cold-weather degradation isn’t just about catching more fish; it’s about weather protection and getting home safely every single time.

Understanding Your Battery Options: From Deep-Cycle to LiFePO4

A deep-cycle marine battery is purpose-built to discharge slowly and repeatedly over extended periods — the exact opposite of a starting battery, which delivers a short, intense burst to fire an engine. For trolling motors, you need sustained current draw over hours, which makes deep-cycle design non-negotiable. Within that category, three main chemistries compete for cold-weather anglers’ attention, and the differences between them are significant.

Flooded Lead-Acid (FLA) Batteries: The Budget Baseline

FLA batteries are the oldest and cheapest option on the market. They rely on liquid sulfuric acid electrolyte, which is precisely the problem in cold weather — that liquid thickens near freezing, spiking internal resistance and gutting usable capacity. On a cold January morning, you may have 40 to 50 percent less power available than the label suggests. Beyond cold-weather performance, FLA batteries demand regular maintenance: checking and topping off water levels, ensuring proper venting to prevent hydrogen gas buildup, and managing the ever-present risk of acid spills in a rocking boat. For dedicated cold-weather fishing, FLA batteries are the least reliable choice available.

AGM & Gel Batteries: The Sealed Upgrade

Absorbed Glass Mat and Gel batteries eliminate the maintenance headaches of FLA by suspending the electrolyte in a solid or semi-solid medium. The sealed construction resists vibration damage far better, making them a natural fit for the constant pounding of a boat hull. Cold-weather performance improves meaningfully over FLA — capacity losses typically run 20 to 30 percent at freezing temperatures rather than 40 to 50 percent — though the drop is still noticeable on long days. For anglers fishing in moderately cold conditions on a tighter budget, AGM batteries offer a practical balance of reliability and cost.

LiFePO4 (Lithium Iron Phosphate) Batteries: The Cold-Weather Champion

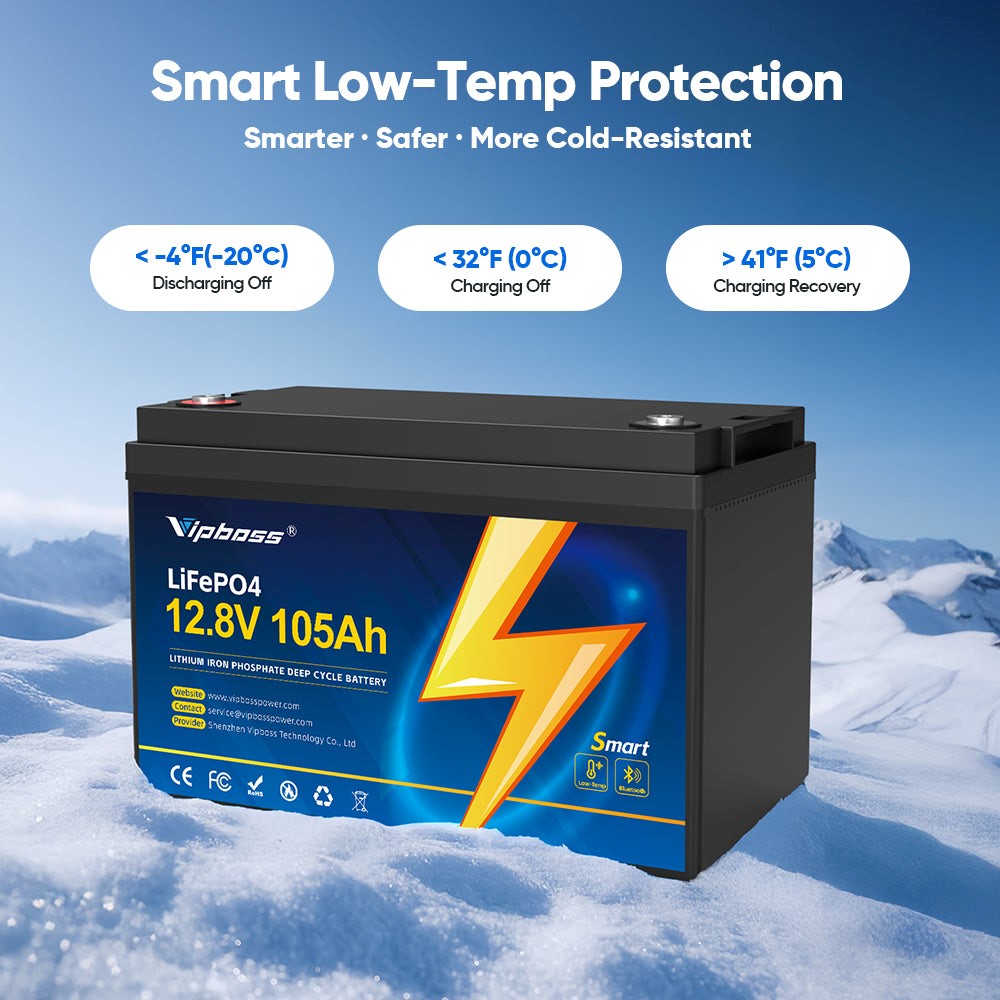

LiFePO4 chemistry changes the equation entirely. These batteries lose only 10 to 20 percent of capacity in freezing conditions, and their voltage remains stable under load throughout the discharge cycle — meaning your motor holds consistent thrust rather than fading progressively. They’re also significantly lighter than lead-acid equivalents, often by 50 to 60 percent, and deliver close to 100 percent of rated capacity as usable power. Manufacturers like Vipboss have built their marine LiFePO4 lines specifically around these cold-weather demands, incorporating low-temperature protection and robust Battery Management Systems as standard features. A quality LiFePO4 battery typically lasts 2,000 to 3,000 charge cycles versus 300 to 500 for AGM. The upfront cost is higher, but spread across years of reliable cold-weather performance, it’s an investment that pays for itself.

Key Specifications for Cold-Weather Battery Selection

Reading a battery spec sheet is straightforward in a warm showroom. Applying those specs to a cold January morning on the water requires a different lens entirely. Three figures matter most for cold-weather trolling motor use, and understanding each one prevents costly miscalculations before you ever leave the dock.

Amp-Hours (Ah) and Reserve Capacity: Planning for the Long, Cold Day

Amp-hours represent the total energy a battery can deliver before it’s depleted — a 100Ah battery can theoretically supply 10 amps for 10 hours. To estimate your needs, check your trolling motor’s amp draw at your typical operating speed, then multiply by your expected hours on the water. Here’s where cold-weather math diverges from the label: a lead-acid battery rated at 100Ah may only deliver 60 to 70 usable amp-hours at freezing temperatures. Always build in a 20 to 30 percent capacity buffer when selecting a lead-acid or AGM battery for cold-weather use. LiFePO4 batteries require a smaller buffer given their minimal capacity loss, but padding your estimate is still sound practice for any extended trip in harsh conditions.

Voltage and Compatibility: Matching Your Trolling Motor

Trolling motors run on 12V, 24V, or 36V systems, and your battery configuration must match exactly. A 12V motor needs a single 12V battery. A 24V system requires two 12V batteries wired in series, and a 36V system needs three. Connecting batteries in series adds voltage while keeping amp-hour capacity the same, so account for that when calculating your total runtime. Before purchasing, verify both the voltage requirement stamped on your motor and the physical battery compartment dimensions — lithium batteries often have different form factors than their lead-acid equivalents despite matching voltage ratings.

Cold Cranking Amps (CCA) vs. Marine Cranking Amps (MCA): A Quick Note

You’ll see CCA and MCA figures prominently displayed on many marine batteries, but these ratings measure a battery’s ability to deliver a massive short burst of current for engine starting — not sustained trolling motor output. Don’t use these numbers to evaluate trolling motor performance. They’re irrelevant to deep-cycle applications and can mislead anglers into prioritizing the wrong specification entirely. Focus on amp-hours and chemistry instead.

Practical Steps to Choose and Maintain Your Cold-Weather Battery

Step-by-Step Selection Guide

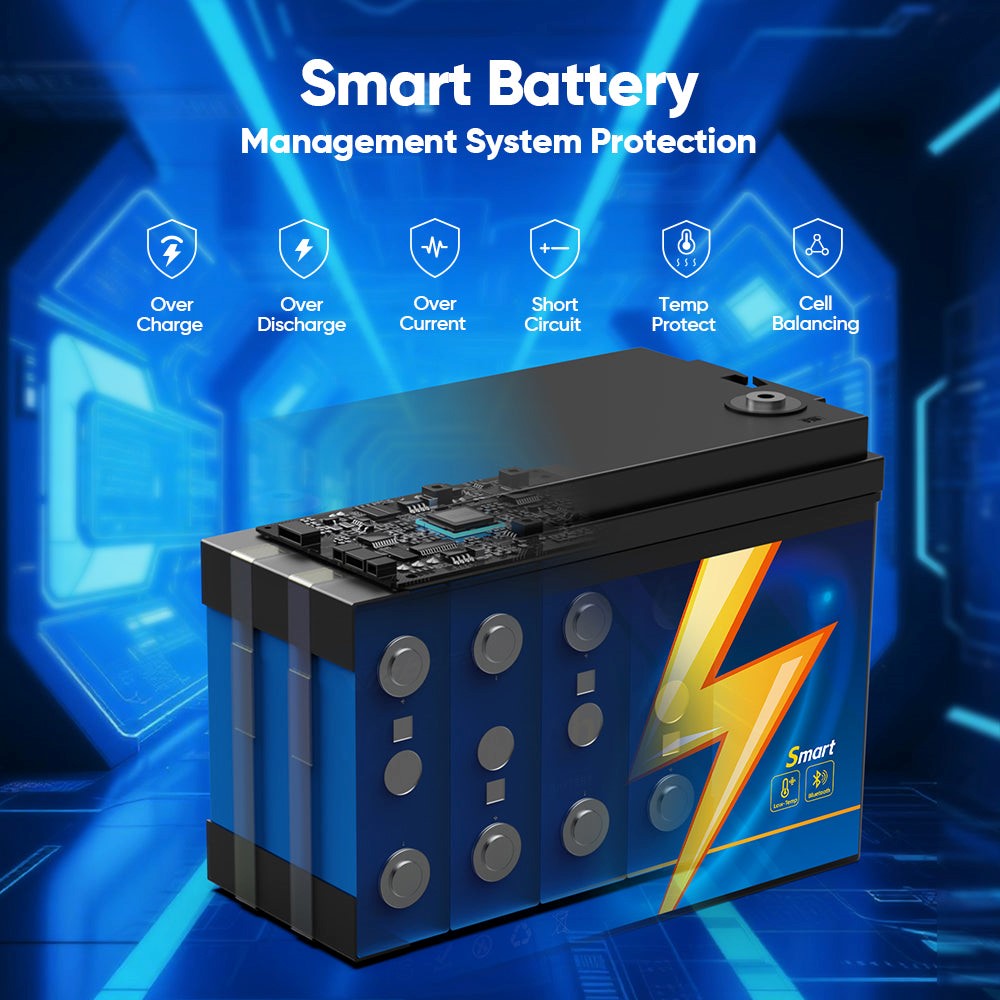

Start with chemistry. For serious cold-weather anglers — those fishing through January ice-out conditions or pre-dawn winter mornings — LiFePO4 is the clear recommendation. Its minimal capacity loss, stable voltage, and long cycle life justify the higher purchase price across multiple seasons. If your cold-weather fishing is occasional and temperatures rarely drop below 25°F, a quality AGM battery offers a practical middle ground at a lower entry cost. Once you’ve settled on chemistry, calculate your capacity needs: determine your motor’s amp draw at typical operating speed, multiply by your planned hours on the water, then add 25 to 30 percent for lead-acid or AGM cold-weather derating, or 15 percent for LiFePO4. Next, confirm voltage compatibility with your motor system and measure your battery compartment before purchasing — lithium batteries sometimes differ in physical dimensions from lead-acid equivalents. Finally, look for these non-negotiable features: a built-in Battery Management System (BMS) in any
